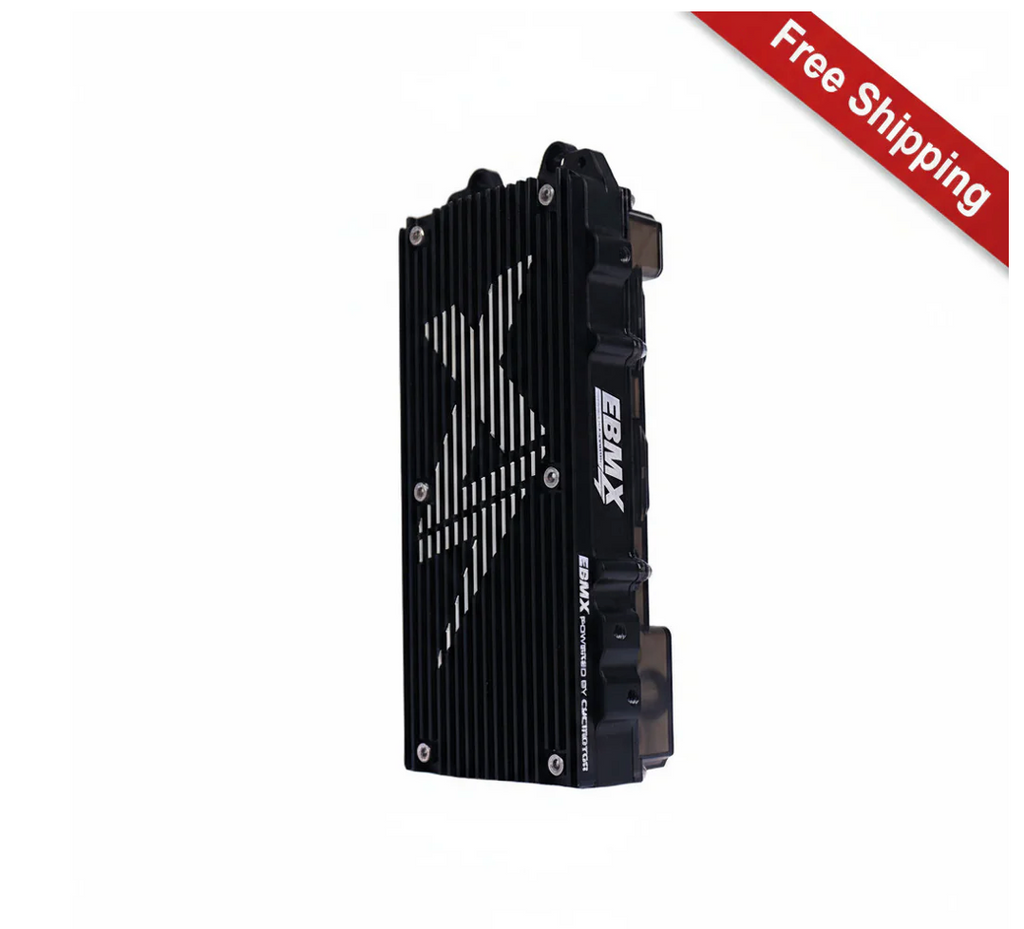

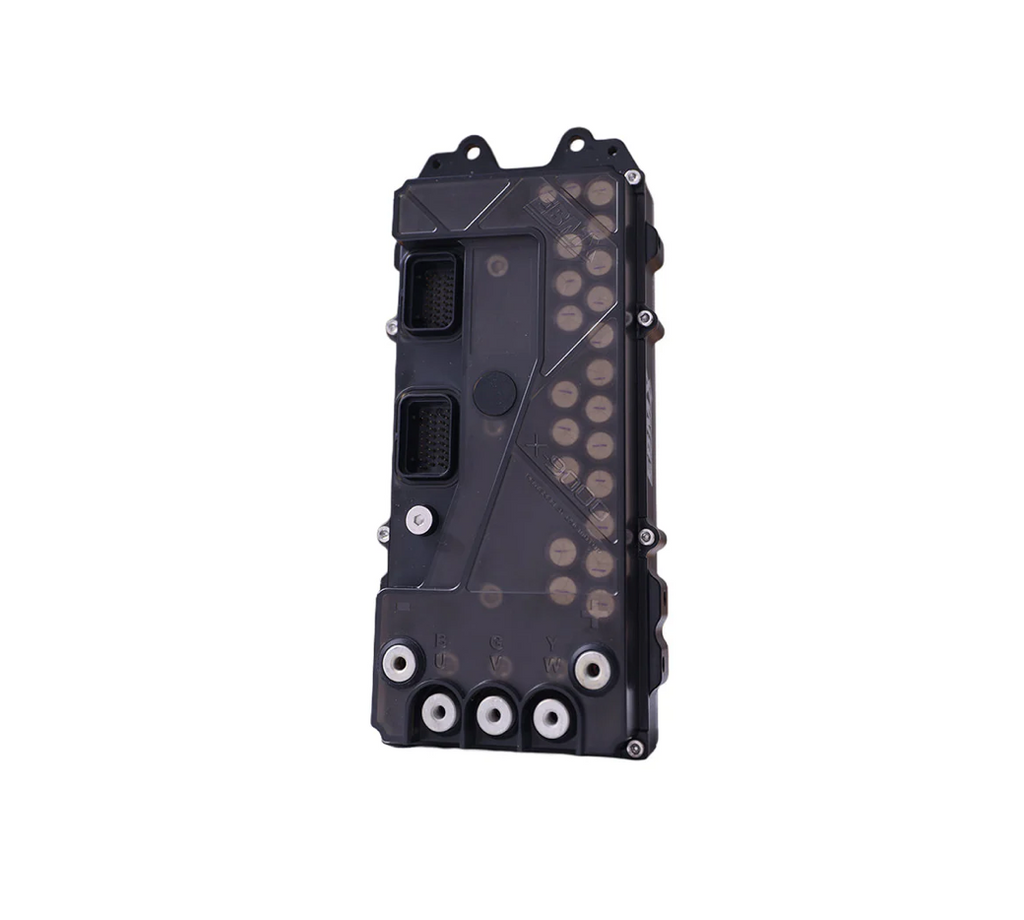

ALL NEW EBMX X-9000 V3 Controller

Built from the ground up for serious riders and racers, the EBMX X-9000_V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s the most advanced, rider-tuned controller on the market.

Whether you’re dominating urban streets, carving trails, or hitting the racetrack, the X-9000_V3 delivers unmatched power, precision, and customization.

EBMX X-9000 V3 App and Display Walkthrough

Power Meets Control

• 50kW Output | 1000A Phase Current | 1600A Burst
• 30 120V Infineon MOSFETs for performance and reliability under extreme conditions
• Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
• Water-Cooling Option for race-level endurance
• IP67 Rated & CNC Alloy Case – Built to take the punishment
• Max Battery Amps 700A

Next Gen Logic

• Industry-Leading 68 IO Support – Runs anything, from race bikes to full-featured builds
• Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
• Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
• Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability

Race-Ready, Rider Tuned

• 6 Fully Customizable Power Levels (Race + Street Modes)
• Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
• Load & Go Battery Profiles – Over 15 plug-and-play setups
• Preloaded Motor Tunes – 30+ motors supported out of the box
• One-Touch Updates – OTA firmware & compatibility expansion

Built for the Bikes You Ride

• SurRon Light Bee
• SurRon Ultra Bee – Works with your OEM Peripherals/Display!! Does not come with thumb regen lever or display (SW102/BC351)
• Talaria MX3 / MX4 / MX5
• Talaria XXX
• E Ride Pro SS 2.0 (With V3 Battery Plug)
• E Ride Pro SS 3.0 (With Breaker)
• E Ride Pro SS 3.0 (Without Breaker)
• E Ride Pro SR
• ReRode R1
• QS138 Motors
• WILL NOT WORK WITH TALARIA XXX PRO, Coming Soon!

Colored Heatsinks available for purchase separately

*Please note all X-9000 sent from July 2025 will be Version 3. Colored v2 heatsinks are compatible with the V3 controllers. V2 Wiring harnesses are NOT compatible.

The current list of motors that the X-9000 is compatible with is below:

• OEM SurRon Light Bee
• OEM SurRon Ultra Bee
• OEM Talaria Sting MX3
• OEM Talaria Sting R MX4
• OEM Talaria Sting MX5
• EBMX XLB-60
• EBMX XTA-60
• EBMX XUB-80
• KO RS SurRon
• KO F Spec SurRon
• KO F Spec Talaria
• QS138 – 90H
• QS138 – 70H
• OEM E Ride Pro SS 2.0
• OEM E Ride Pro SS 3.0
• OEM E Ride Pro SR
